제품소개

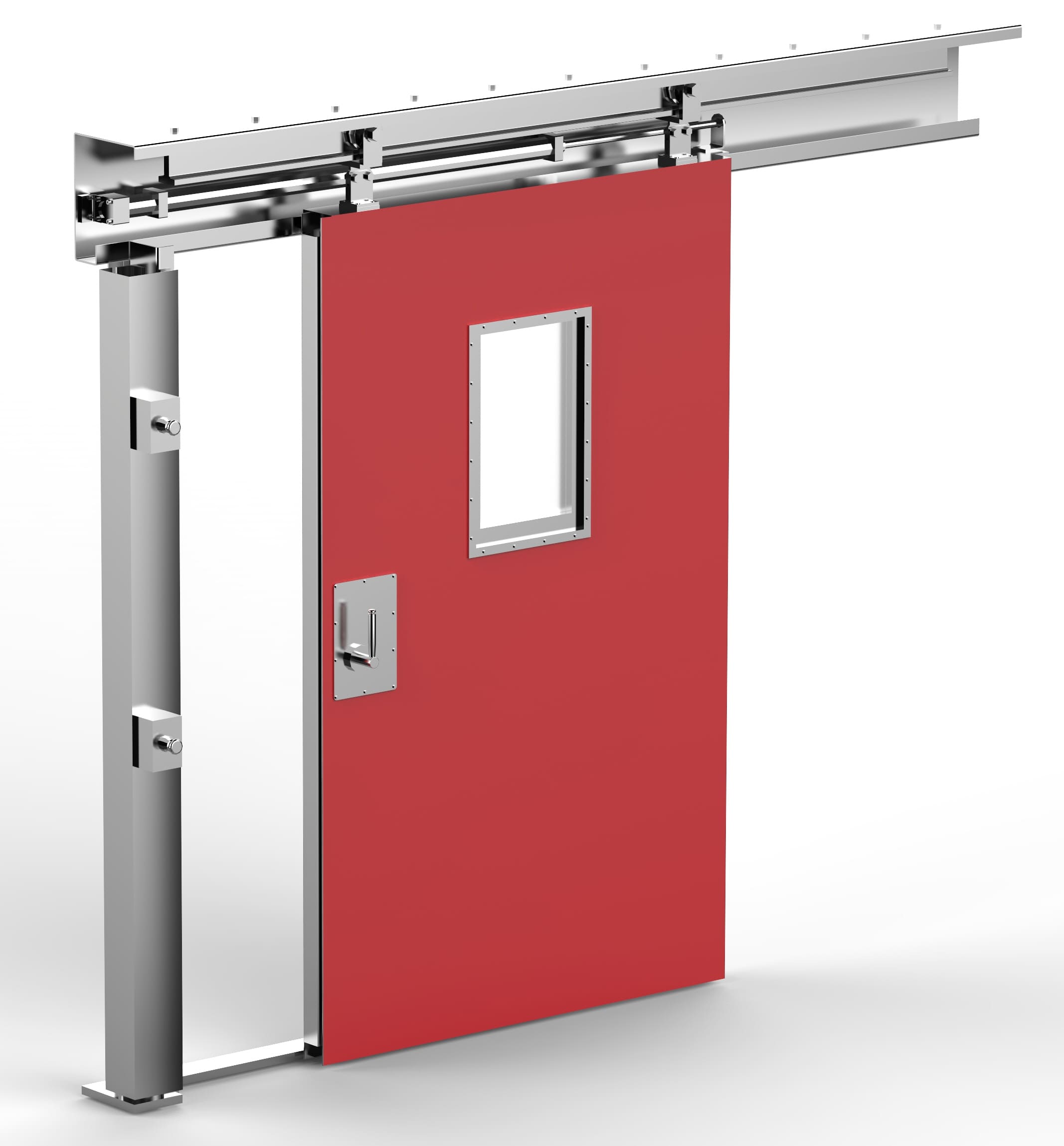

Pneumatic Fire Door
방화문은 유사 시 화재의 확대, 연소를 방지하며 사람이 피난할 수 있는 문으로 선박의 구조물 및 구획 사이에 설치되며 방화등급에 따라 분류합니다.

FEATURE

  • Designed for internal and external use.
  • Pneumatic or manual operating system can be adopted.
  • Safety device provides safe pass through the door.
  • Manual operation is available when pneumatic power fails.

GENERAL SPEC.

Model FSD-A
Opening Direction Right of Left
Max. Clear Opening Size W1250 × H2100 (to customer's requirement)
Fire Rating A0, A30, A60
Material Steel Plate (Stainless Steel, Mild Steel, Galvanized Steel, etc.)
Operating System Pneumatic or Manual
Installation Bolted or Welded
Safety Device Safety Strip on Door Edge Side
Certificate DNV Type Approval Certificate
Option Weathertight / Gastight Seal, Hose Port, Window
Insulation 45mm Thick × 2Layer / Density 128K
