Manual Hydraulic Remote Valve Operating System
유압식 밸브원격조작장치(HYDECK)는 원거리 또는 사람이 접근하기 어려운 곳에 있는 밸브를 안전하고 편리하게 조작하기 위하여 개발된 제품입니다. HYDECK은 유압 작동유를 펌핑하여 동력을 발생시키는 트랜스미터와 밸브에 장착된 액추에이터로 구성되며, 서로 연결된 한쌍의 작은 튜빙을 통해 유압을 전송하여 밸브를 작동시킵니다.

FEATURES

  • Easy and cost-effective installation.
  • Easier operation with higher efficiency and reliability of the performance.
  • The transmitter can be installed in any position.
  • High reliability without the necessity of special maintenance.
  • Emergency local manual handle can be mounted on the receiver valve.
HYDRAULIC ACTUATOR

STANDARD SPECIFICATION

Operating Fluid Hydraulic Oil (ISO VG 22~32)

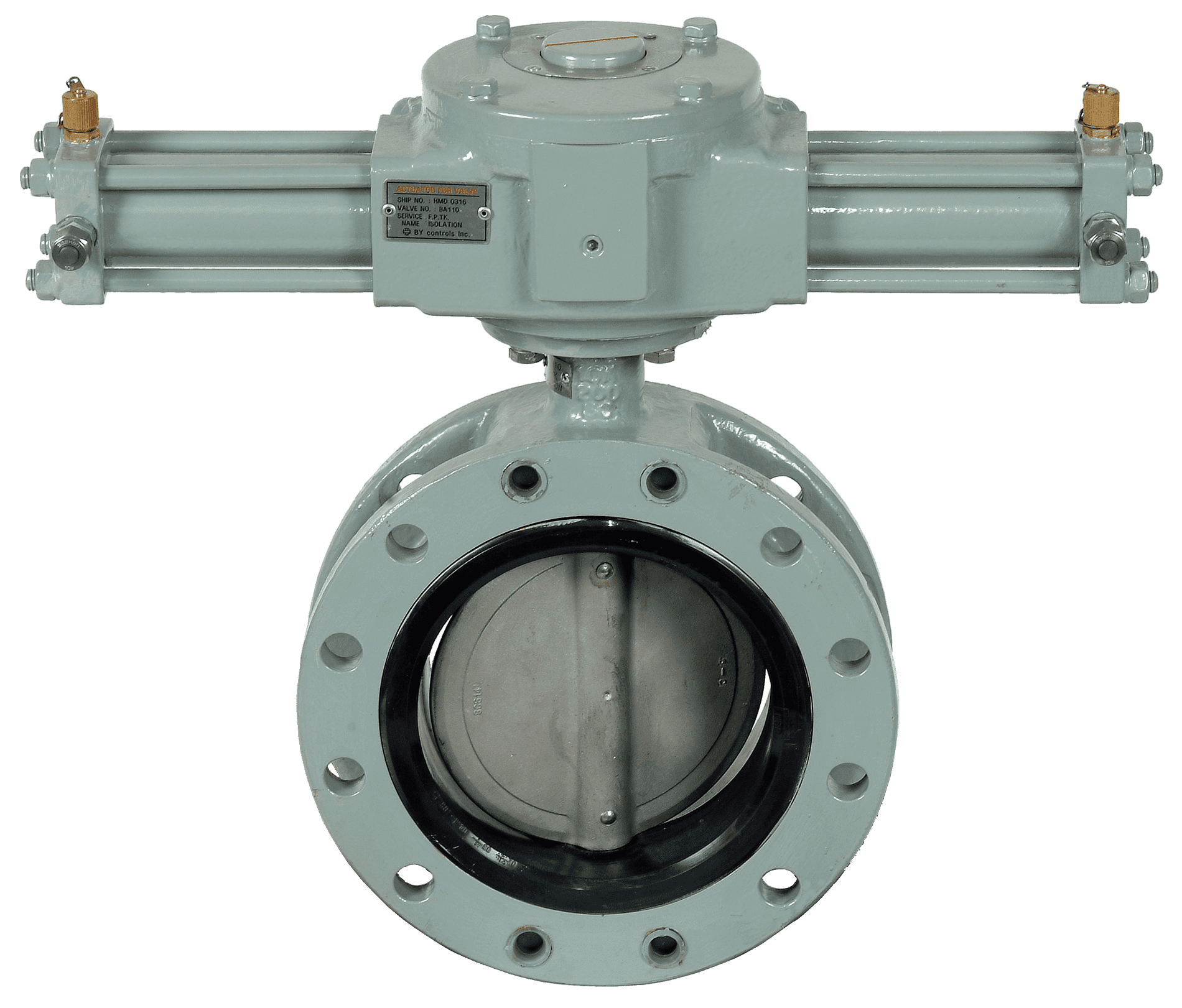

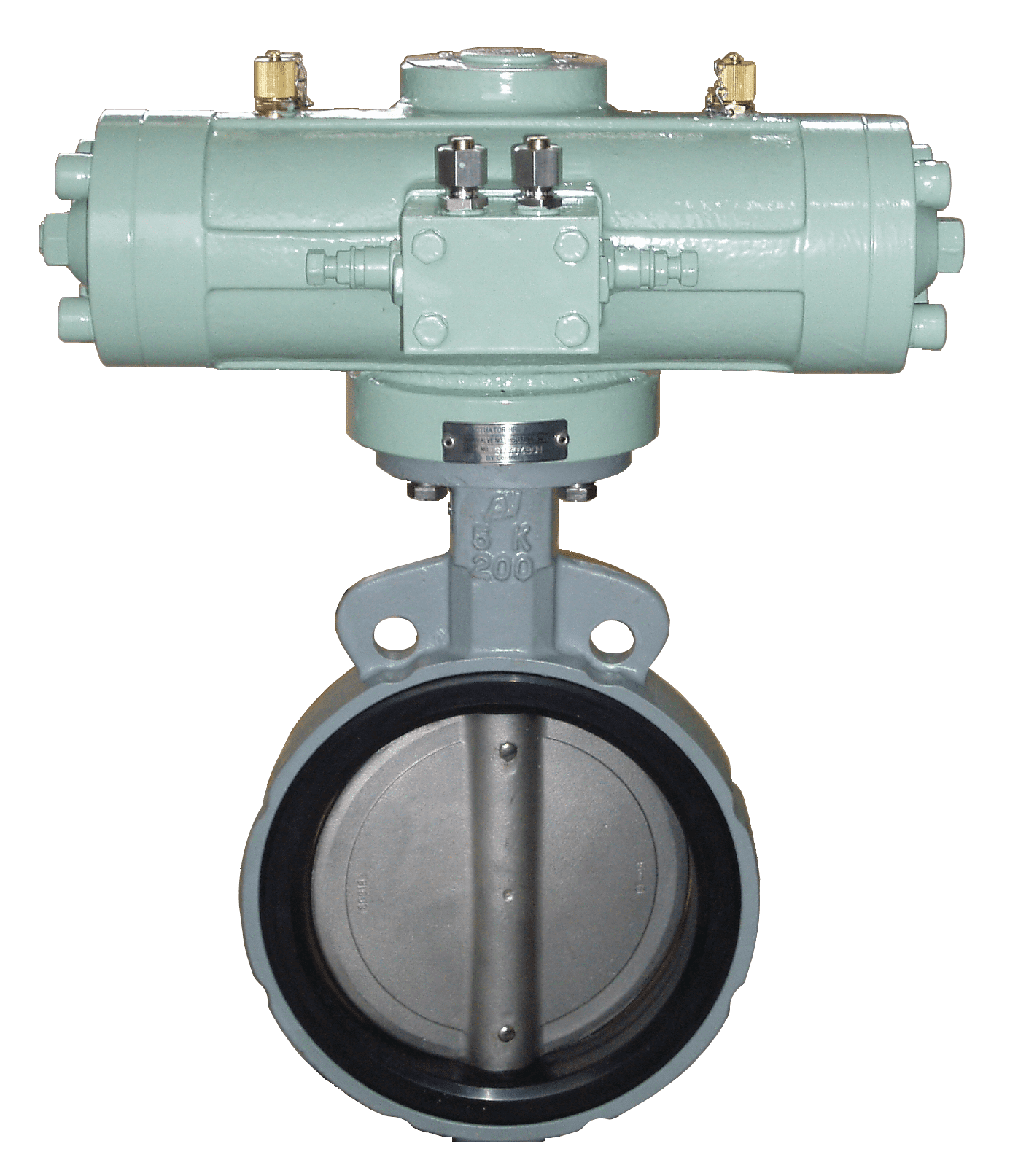

Actuator Type Rotary Rack & Pinion, Scotch & Yoke

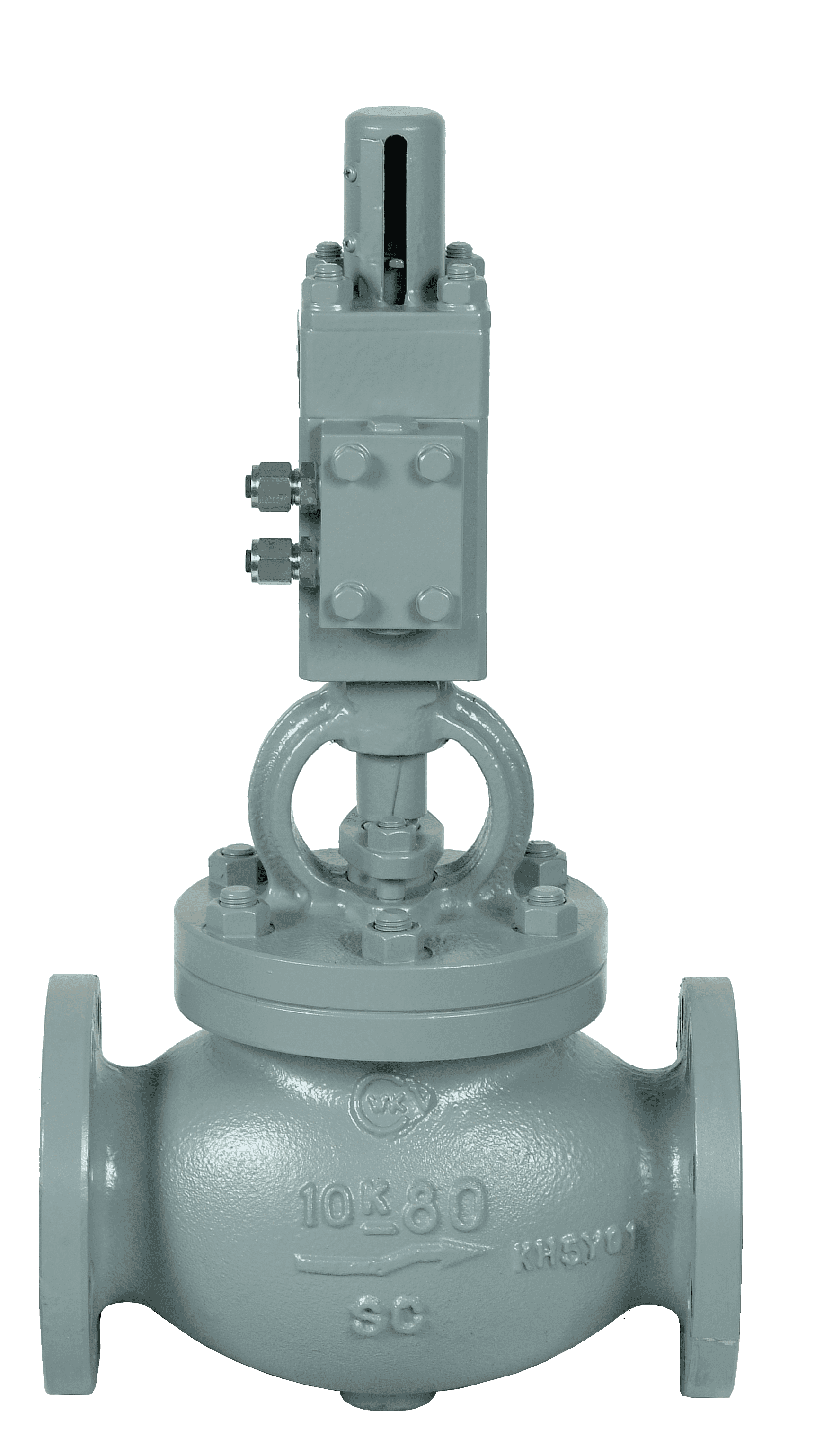

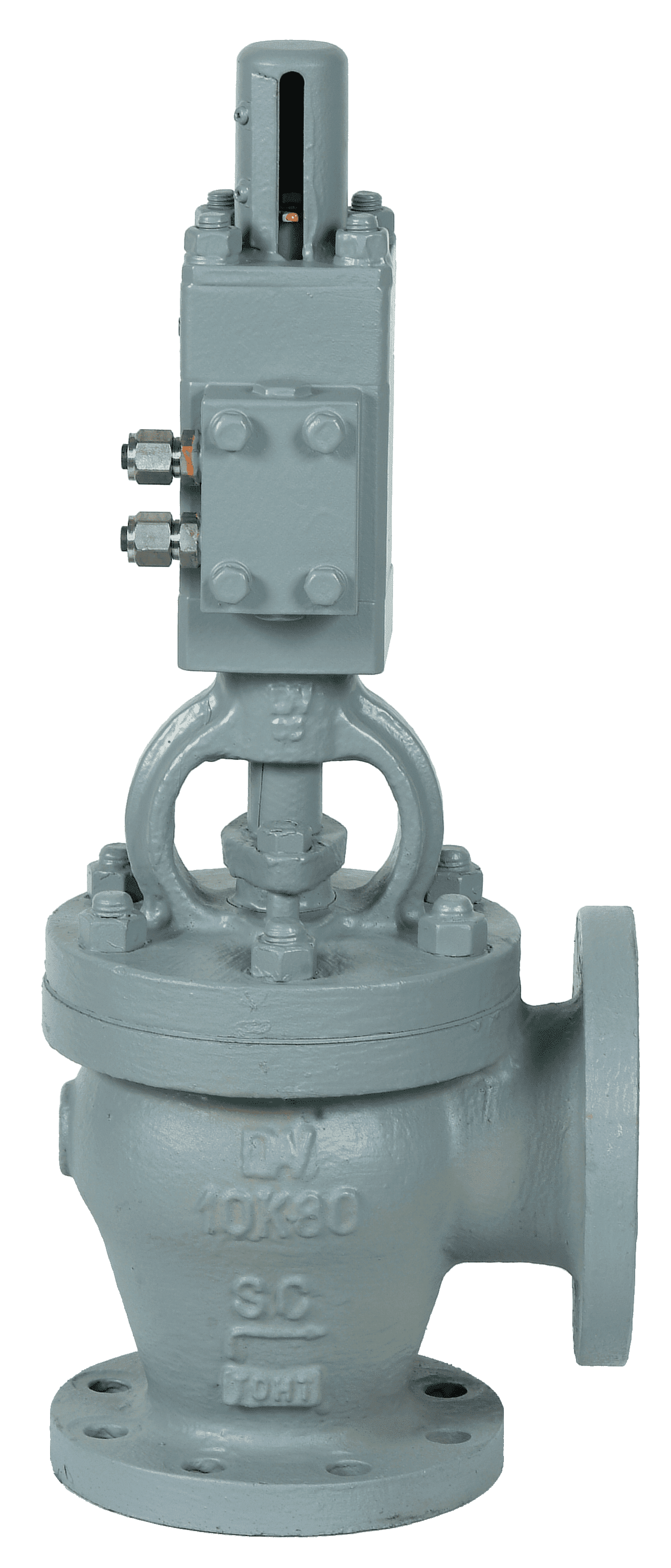

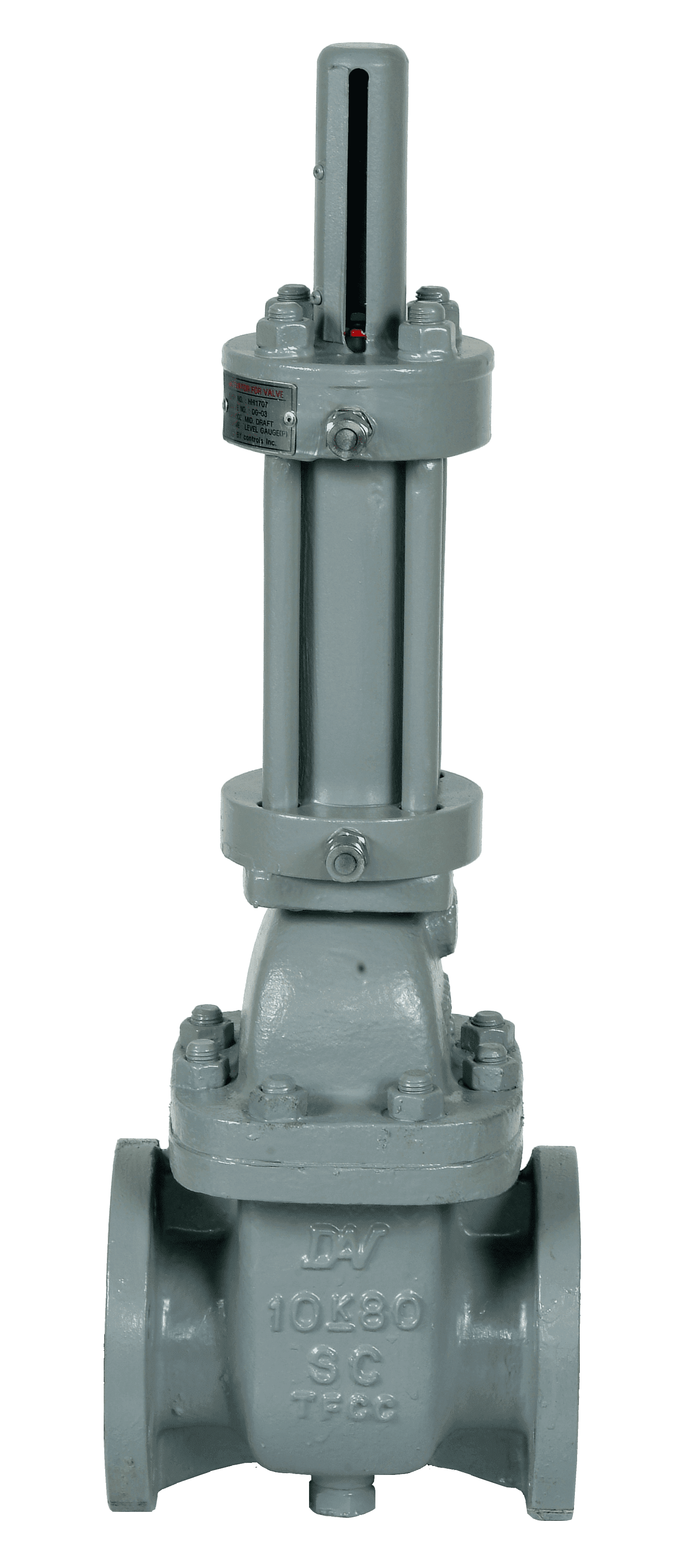

Linear Linear Cylinder

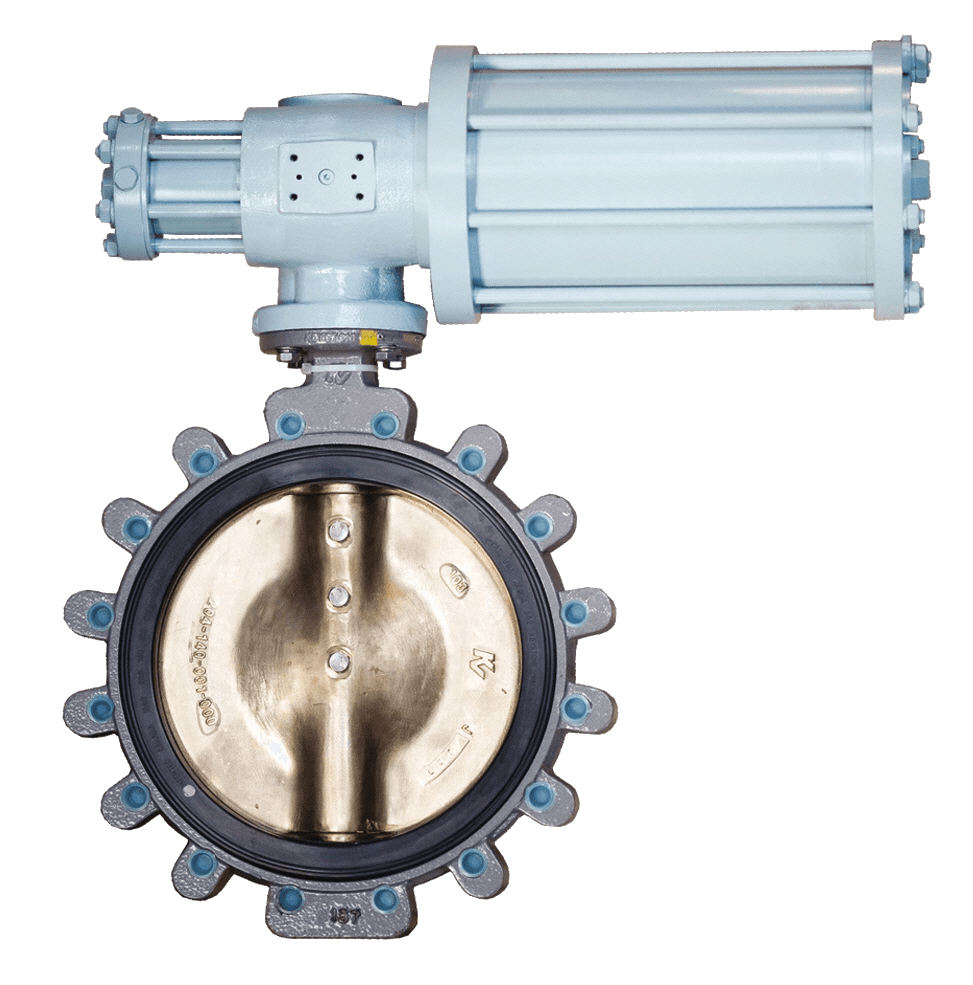

Actuator Action Double Acting, Single Acting
Temperature Range -29 ~ 70˚C (-20 ~128˚F)
Accessory (Option) Manual Handle, Lamp Box, Limit Switch

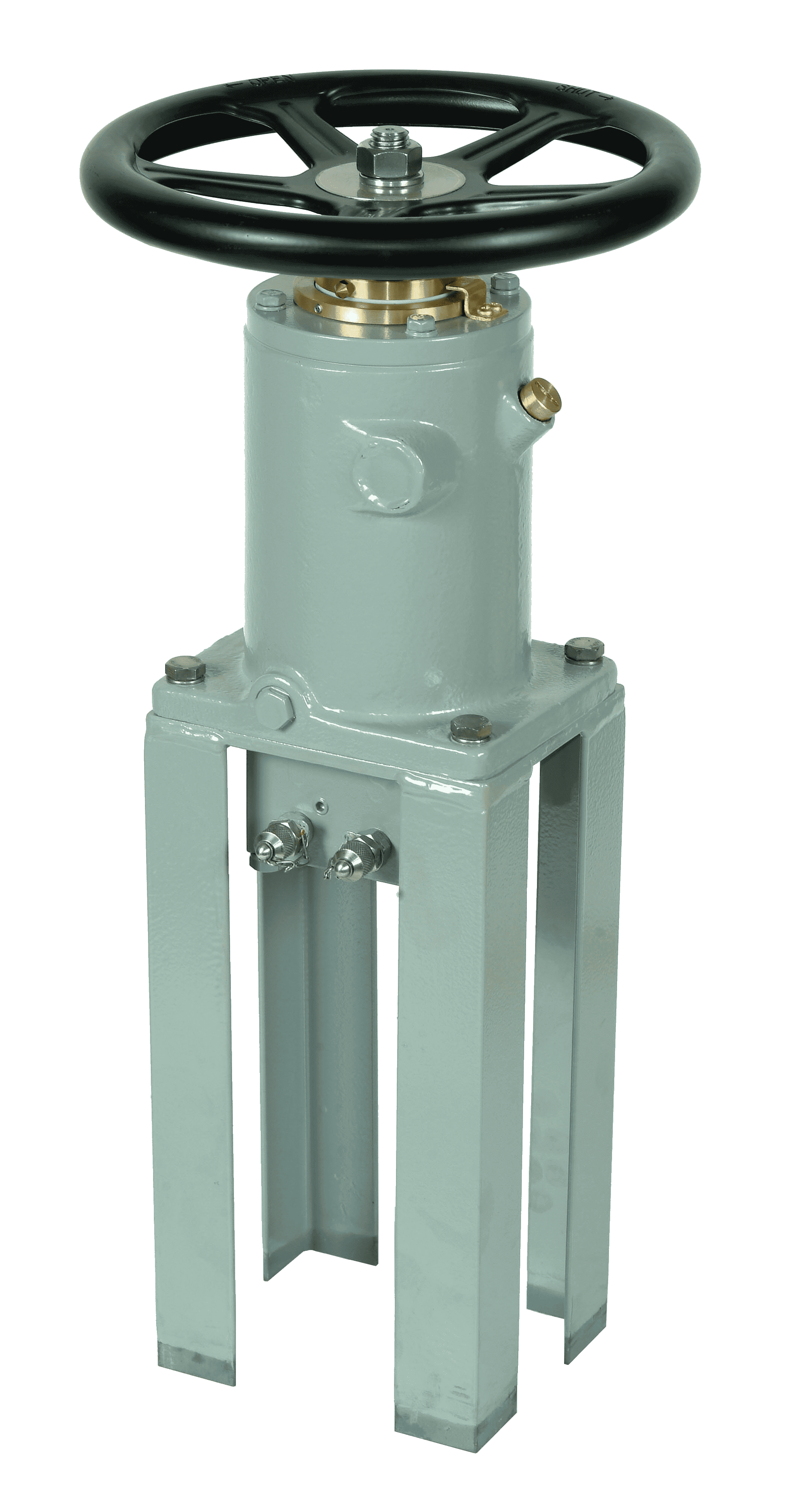

TRANSMITTER

STANDARD SPECIFICATION

Operating Fluid Hydraulic Oil (ISO VG 22~32)
Discharge Capacity 12cc/rev, 24cc/rev, 48cc/rev, 67cc/rev
Relief Pressure Open : 110 kg/cm2
Close : 100 kg/cm2
Test Pressure 150 kg/cm2
Tank Volume 1.6 liter

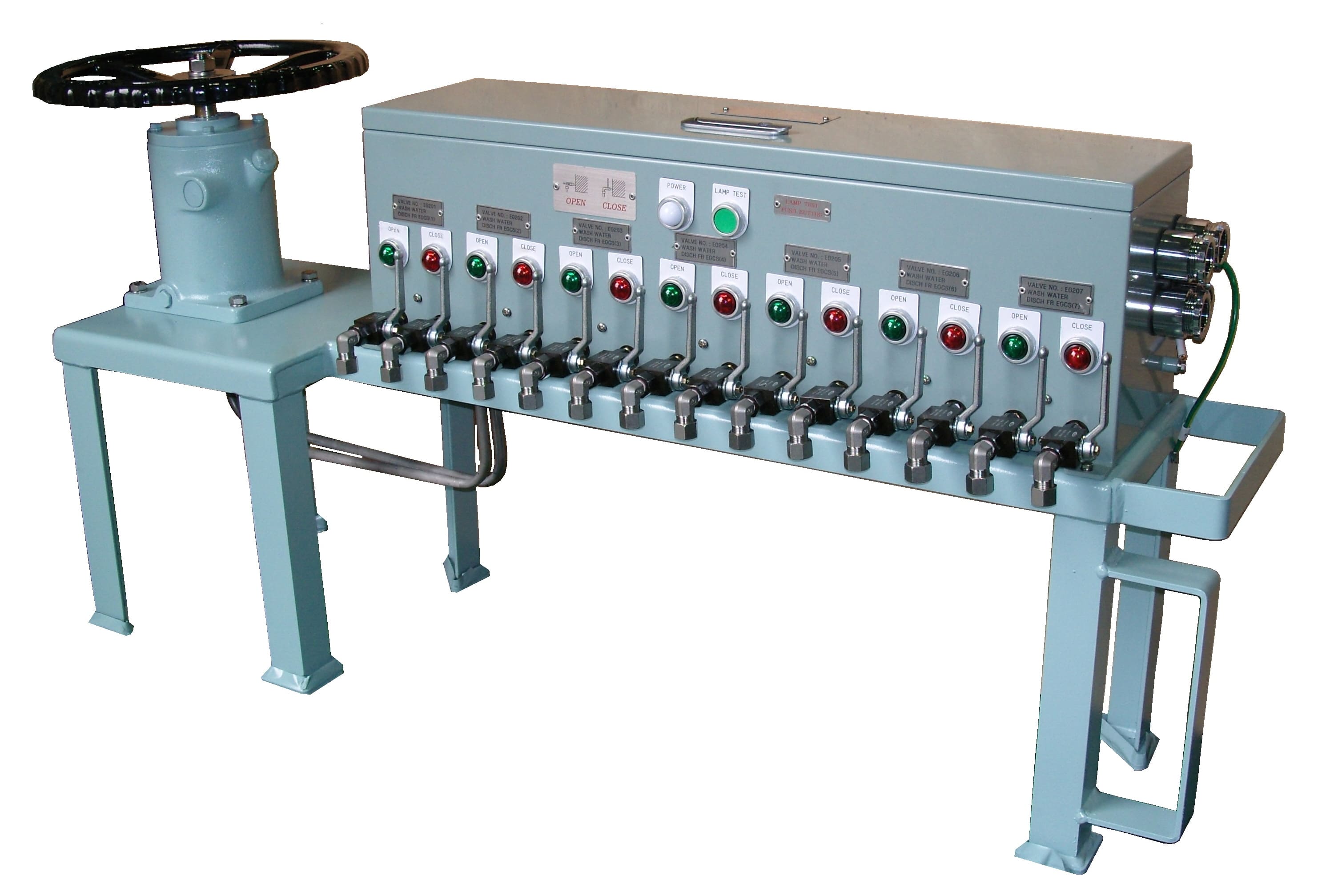

Type Single Type, Multi Type
