MOV (Motor Operated Valve)
컨트롤밸브에 전동식 엑추에이터 적용이 가능하며 견고하고 컴팩트한 디자인과 함께 정밀한 제어 성능을 제공합니다.

FEATURES

  • Compact and robust construction
  • Fulfill all requirement for control valve actuators
  • Precise positioning
  • Reliable performance and ability with long life at high loads
  • Central arrangement of accessories

GENERAL SPEC.

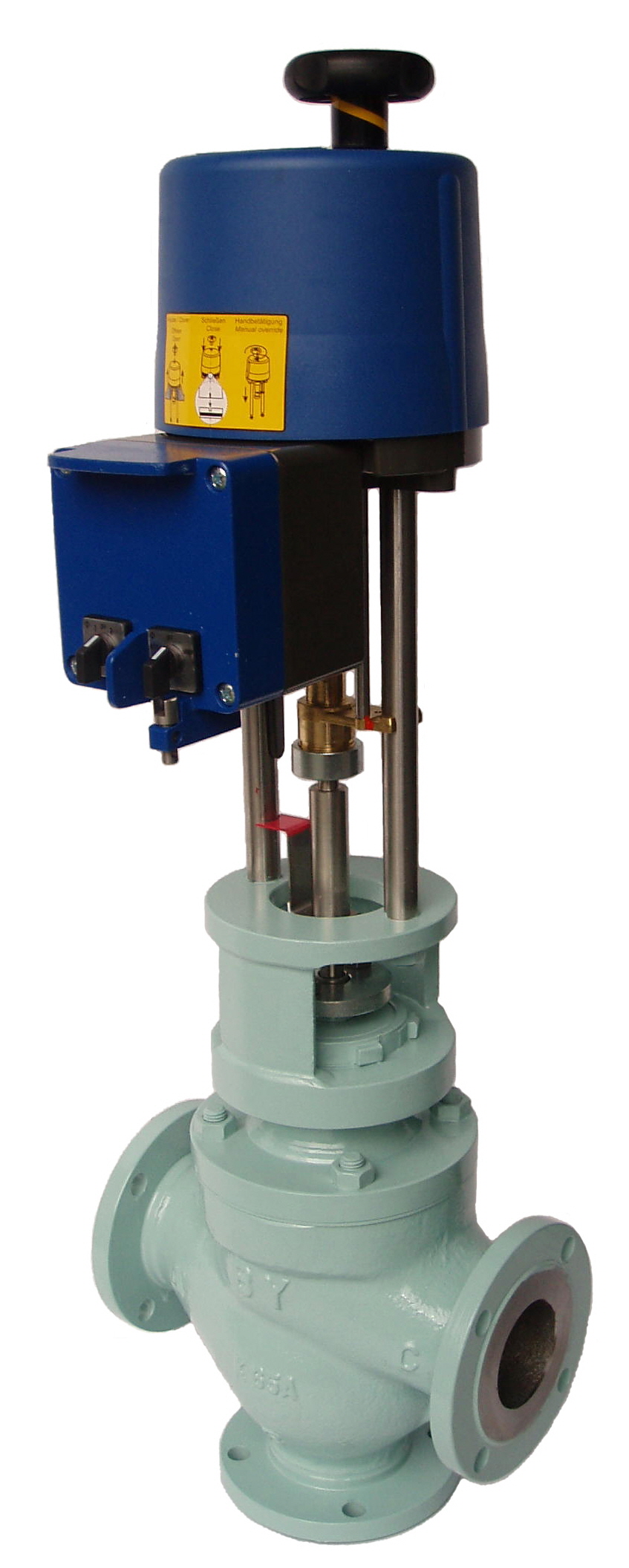

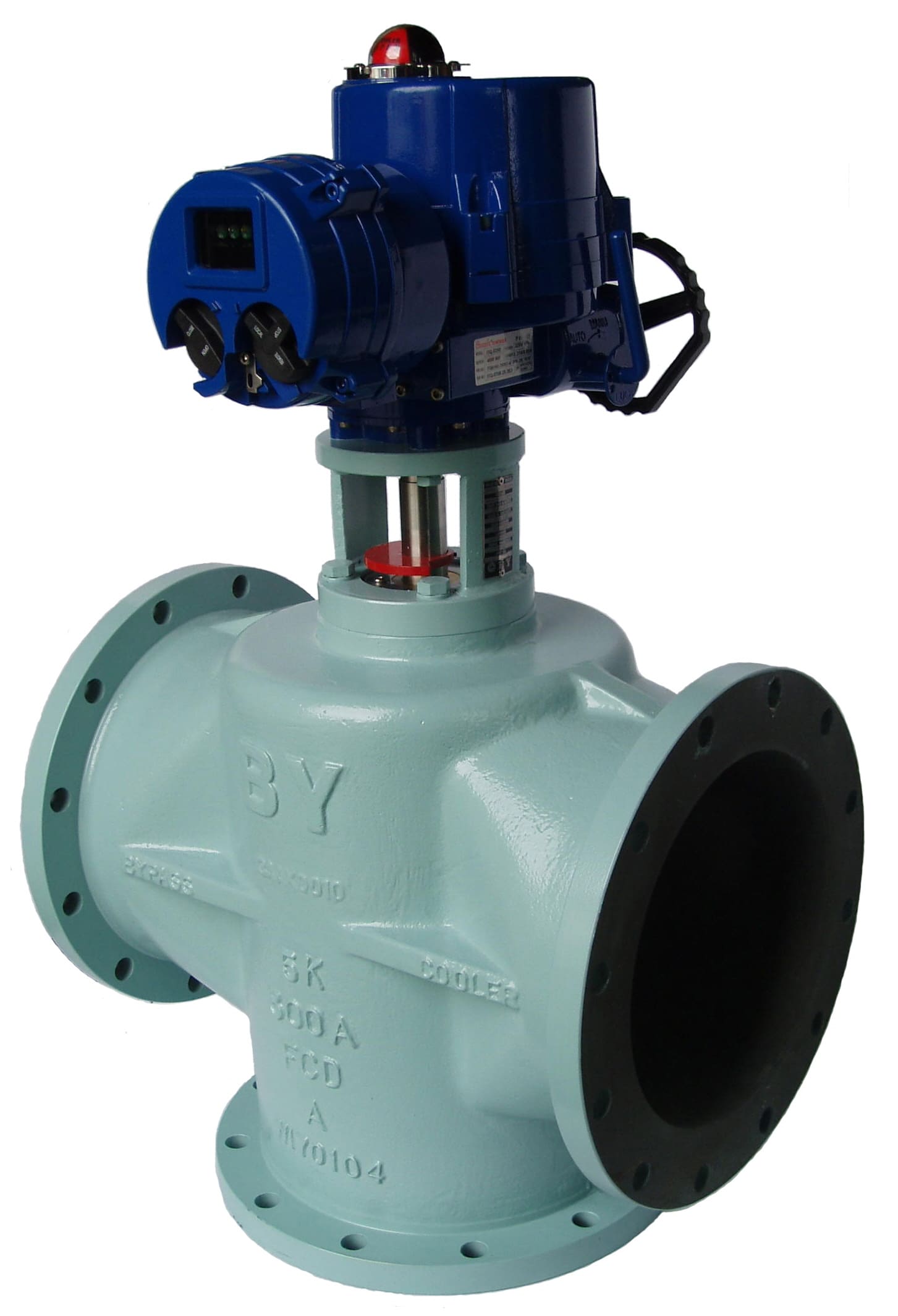

Valve Body Type & Style 2-way Globe 3-way Globe 3-way Rotary
Motor
Actuator
Type Linear Type Electric Actuator Rotary Type Electric Actuator
Power Supply 115/230VAC/1Ph/50/60Hz, 24VDC 110/220VAC/1Ph/50/60Hz
Force / Torque 1 ~ 25kN 100 ~ 1100Nm
IP Class IP67 IP67
Action On/Off & Modulating
Pressure Rating ANSI 125 ~ 300
JIS 5 ~ 20K
ANSI 125 ~ 300
JIS 5 ~ 20K
ANSI 125 ~ 150
JIS 5 ~ 10K
Valve Size 1/2" ~ 16"
(15 ~ 400mm)
1" ~ 16"
(25 ~ 400mm)
4" ~ 26" (100 ~ 650mm)
Tempereture Motor -20℃ ~ 80℃ -20℃ ~ 80℃
Valve PTFT V-ring : -20 ~ 460℉ (-29 ~ 238℃)
Laminated Graphite: -320 ~ 800℉ (-195 ~ 427℃)
32 ~ 212℉ (0 ~ 100℃)
Accessory Limit Switch, Electronic Positioner, Position Transmitter,
Local Control Module with Auto/Manual Select Switch, etc.
