Hydraulic Hatch
해치는 화물이나 장비를 싣고 우수의 유입을 방지하는 장치이며 주로 갑판에 설치됩니다.
사용 목적에 따라 크기가 달라지며 당사에서는 이와 같은 여러 사이즈의 Hatch에 대하여 고객의 니즈에 맞게 제작 및 공급 가능합니다.

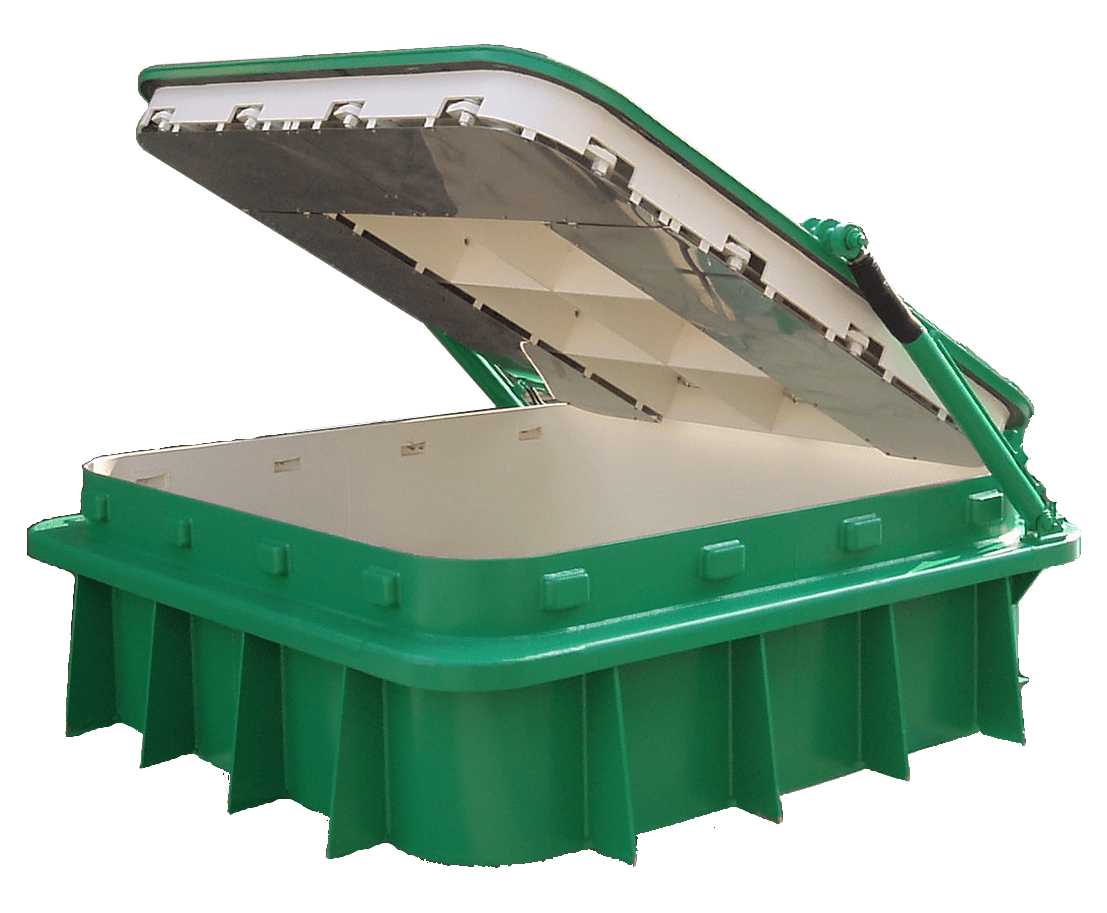

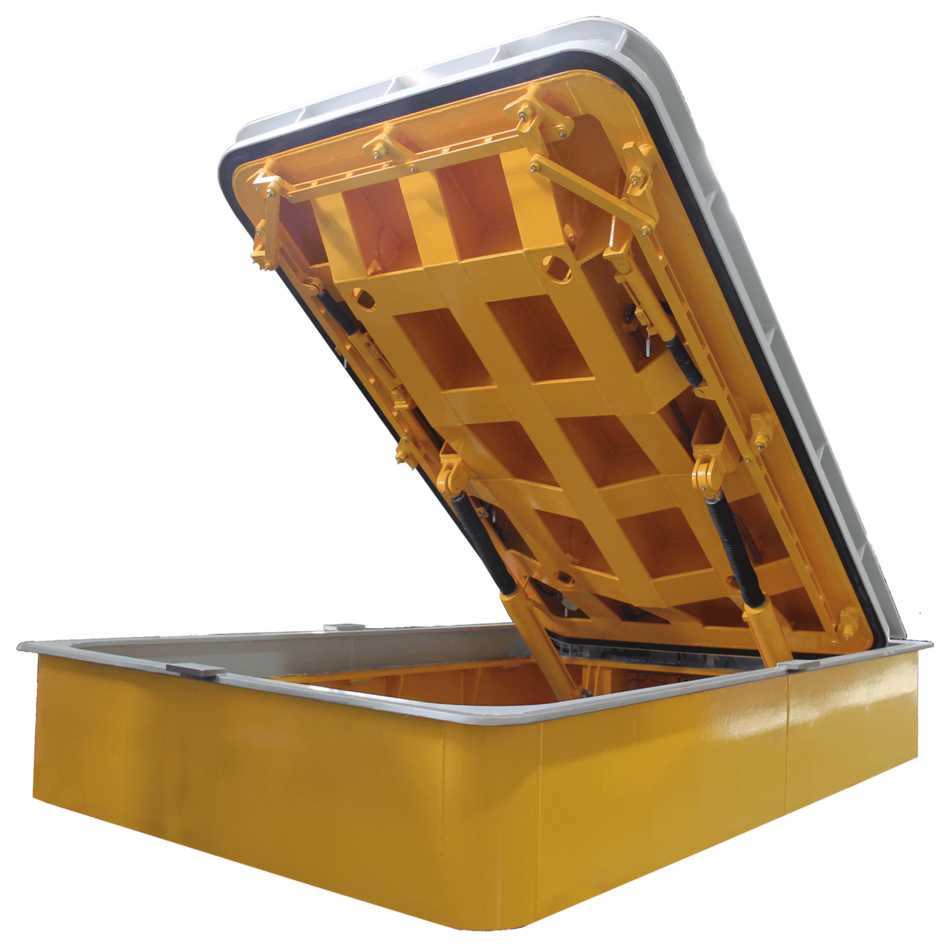

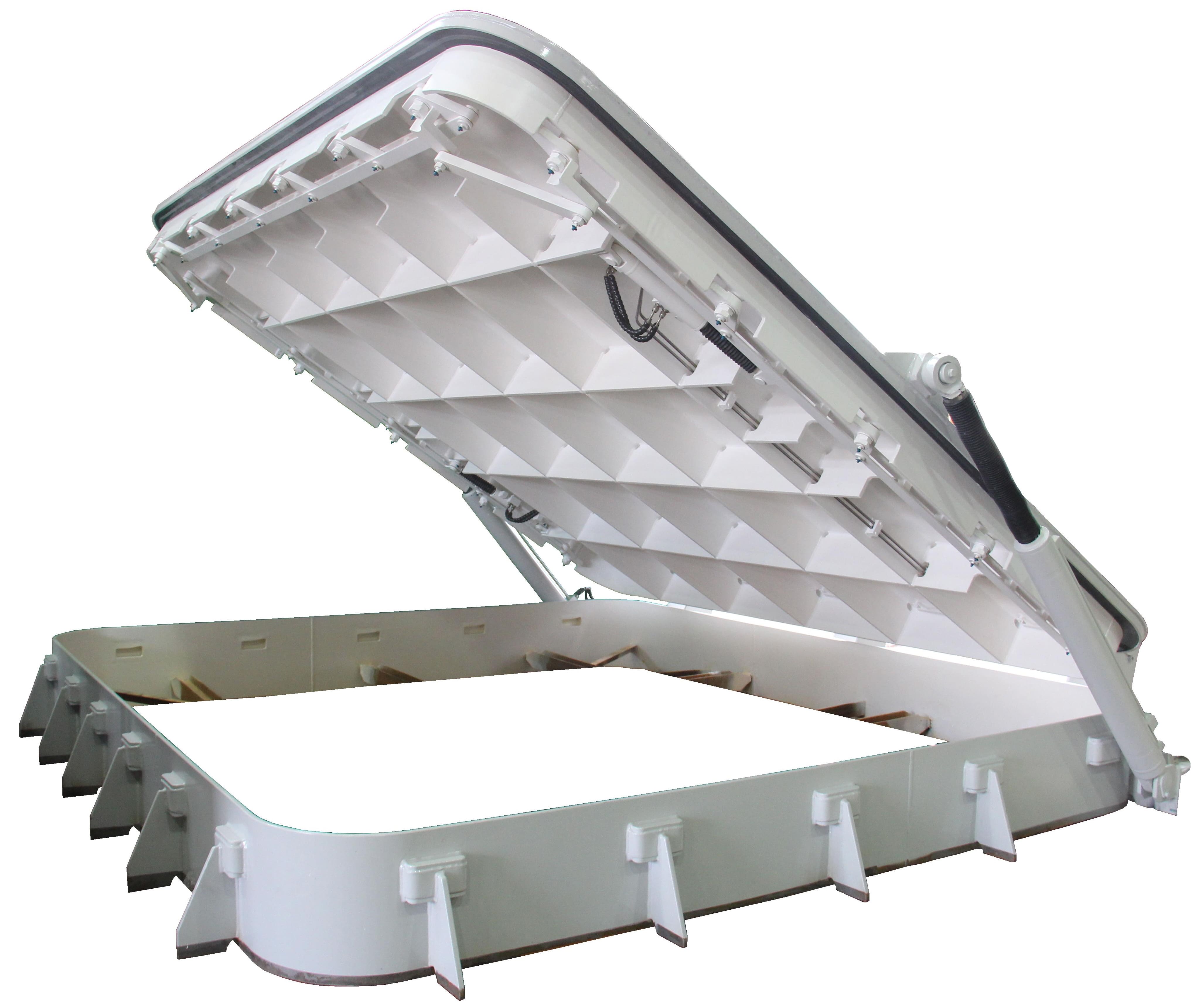

HYDRAULIC HATCH FEATURE

  • Hatches designed and manufactured to customer's required clear opening and load.
  • Operated from hydraulic cylinders connected to HPU system.

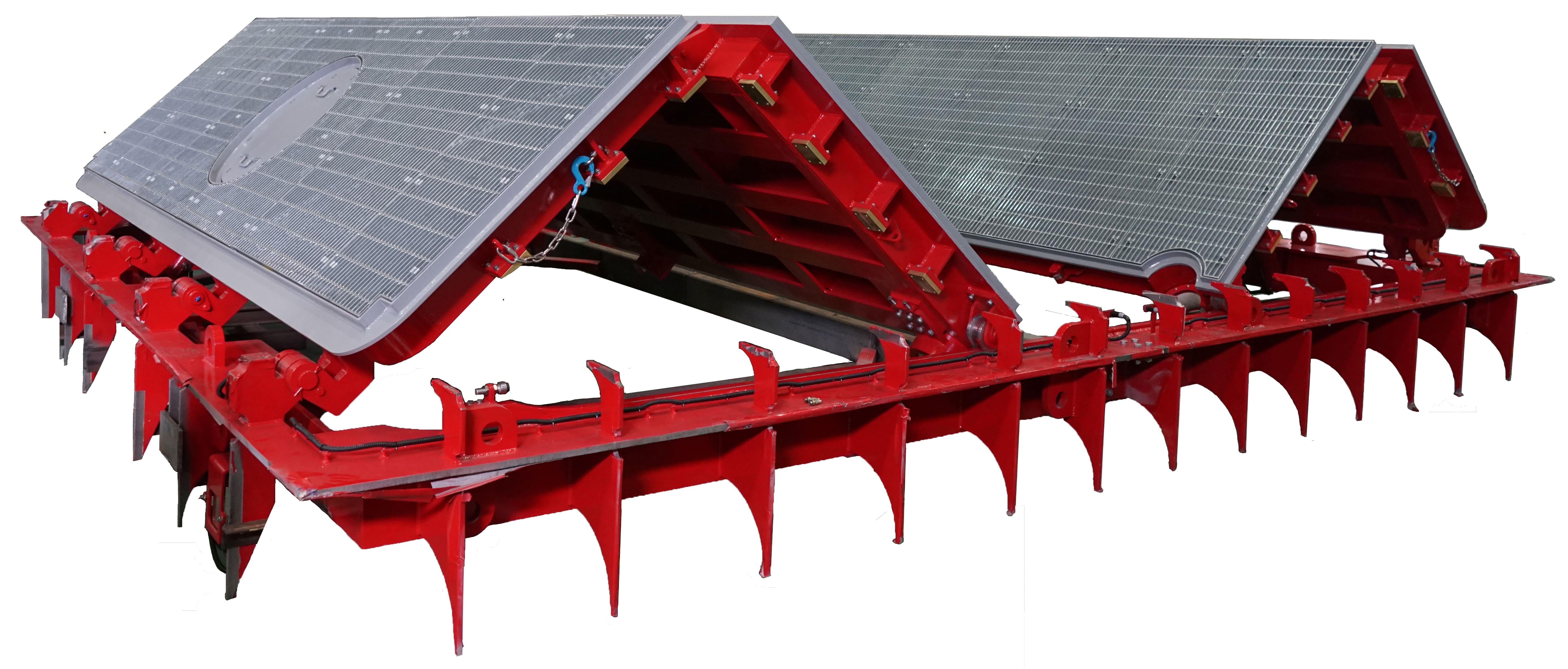

ROV HATCH FEATURE

  • Fitted to lower deck for access of ROV.
  • Supplied with coaming, hinges, roller, operating panel and complete hydraulic system.
  • The hatch has two main pieces split hatch where two sub-pieces folded of each fold upwards and can keep the clear size, but without any interference with ROV cage.

GENERAL SPEC.

ITEM ROV HATCH HYDRAULIC HATCH
Type Hinged & Flush Coaming & Flush
Opening Direction Bi-fold Upward Open Upward Open
System Electro-hydraulically driven Electro-hydraulically driven
Hatch Open/Close Hydraulic cylinder Hydraulic cylinder
Operating Tool Push button in Local Panel Push button in Local Panel
Material of Cover, Hatch AH, DH, etc. AH, DH, etc.
Size 5200 × 5200mm (to customer's requirement) to customer's requirement
Enclosure Weathertight Watertight / Weathertight
