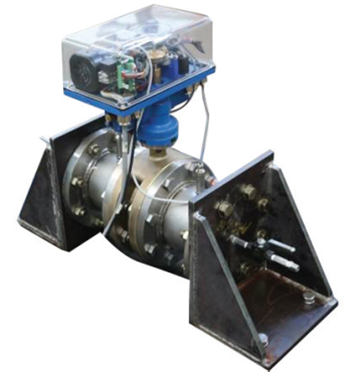

Smart Valve
Smart Valve is a valve equipped with accident response technology that can quickly recover pipe damage within golden time to prevent the spread of large accidents in the event of leakage due to unexpected pipe damage. The effectiveness of autonomous technology can be maximized by responding more actively to situations of piping system failure and damage that are more advanced in the existing VRCS.

FEATURES

  • Compatible to the exgisting VRCS.
  • Collecting active data through pressure monitoring
  • Autonomous detecting breakage through machine learning, deep learing.
  • Recovering piping system function through autonomous open-close control

GENERAL SPEC.

Rotary Actuator
Model ERB 35 / 60 / 80 / 100 / 125
Mechanism Rack & Pinion
Operating System Electro-Hydraulic
Power Supply 220VAC 50/60Hz
Hydraulic Fluid ISO VG 15
Protection IP67 / IP68
Composition Control Module, Actuator, Valve, Sensor

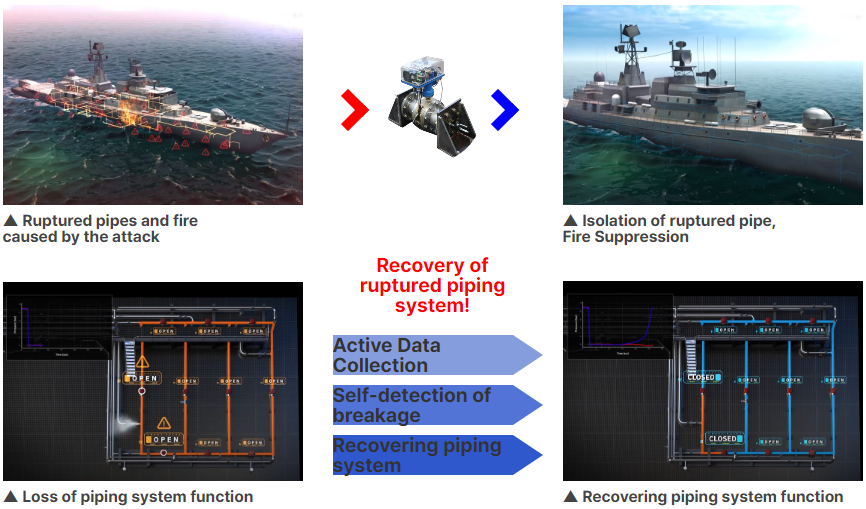

Application of K-Smart Valve in Piping System of Navy Ship

  • ▲ Ruptured pipes and fire
    caused by the attack
  • ▲ Isolation of ruptured pipe,
    Fire Suppression

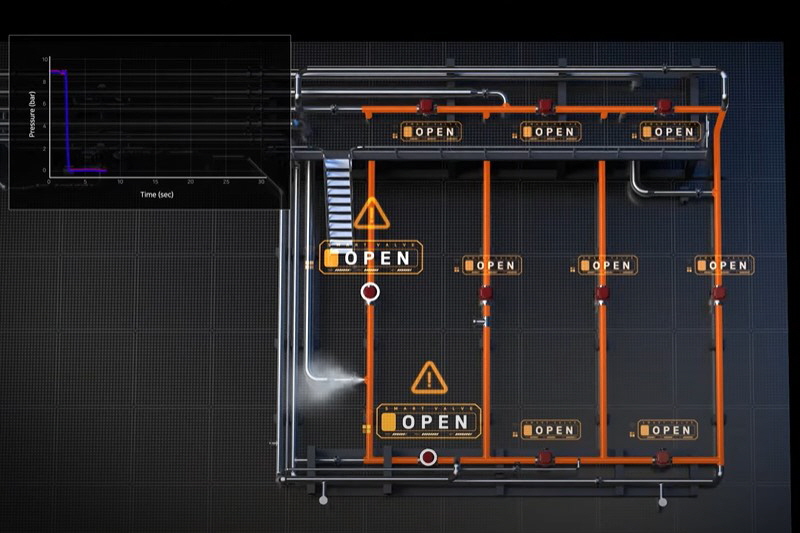

  • ▲ Loss of piping system function

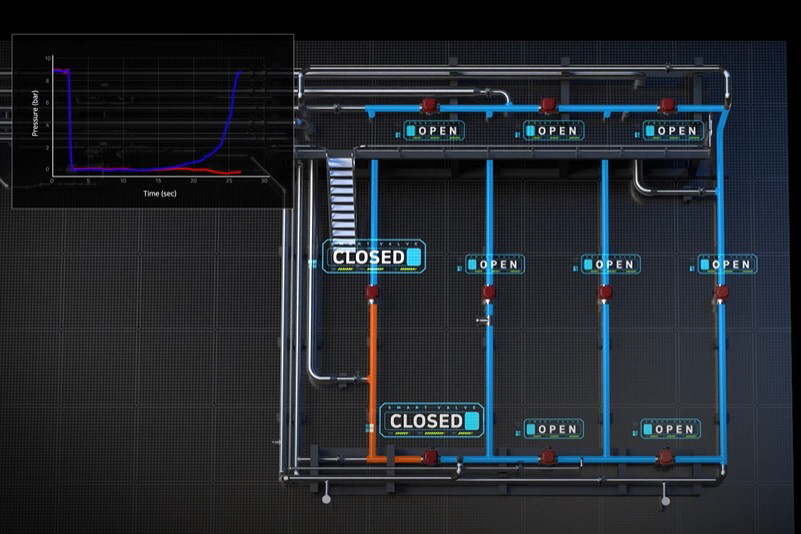

  • ▲ Recovering piping system function

Recovery of
ruptured piping
system!

Active Data Collection Self-detection of breakage Recovering piping system

Smart Valve Promotional Video

Smart valve that recovers damaged pipes on its own is developed for the first time in Korea
