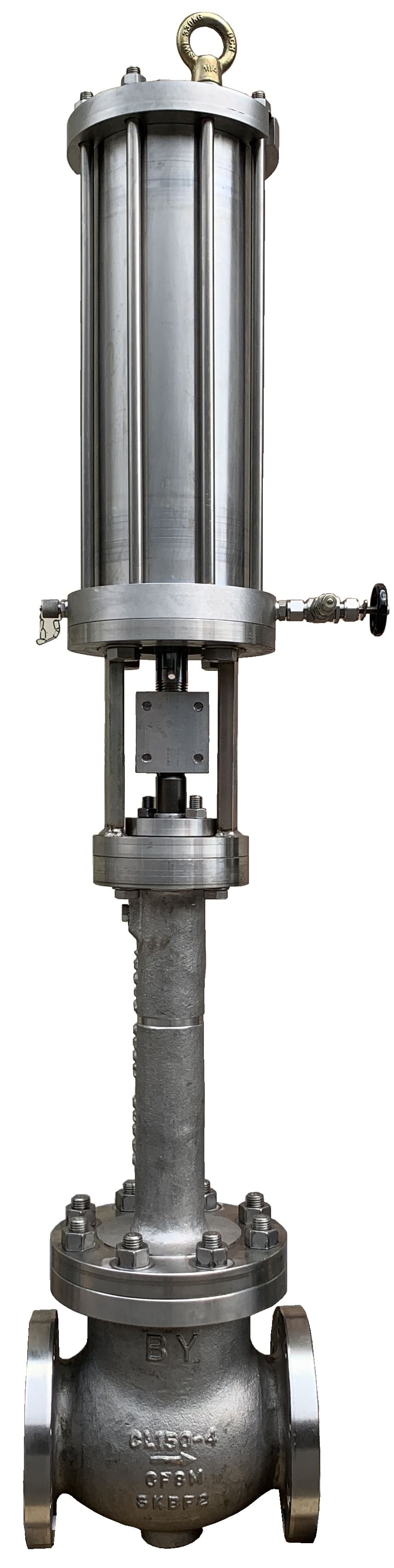

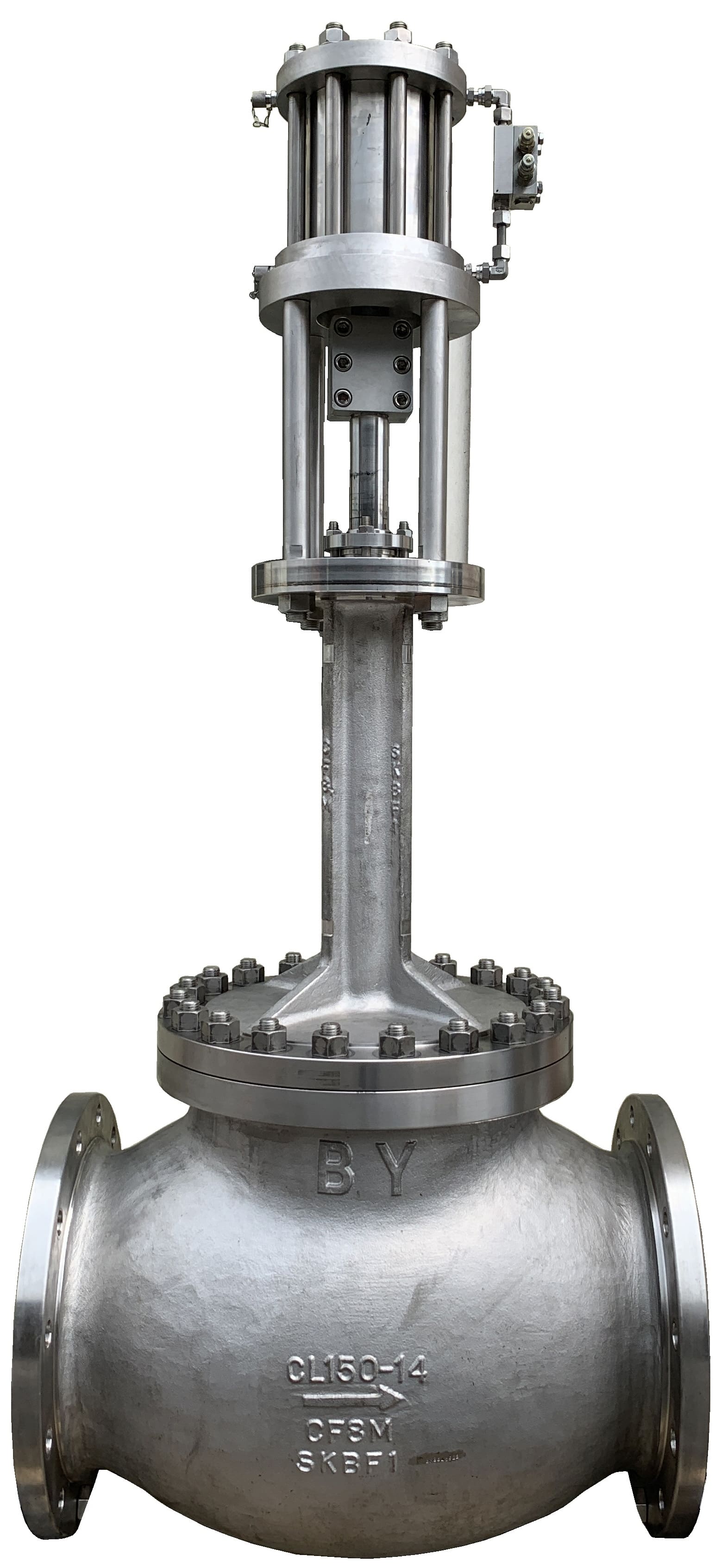

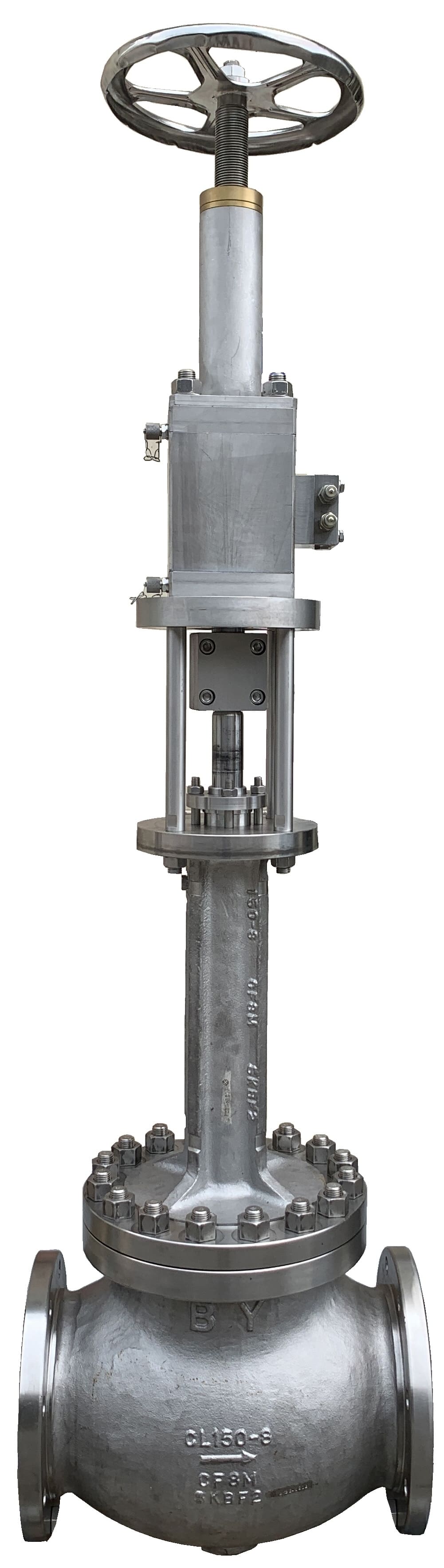

Valve | Pressure Rating / Size | ASME 150 ~ 1500LB / 1" ~ 14" (25 ~ 350A) |
---|---|---|
End Connection | Flange(ANSI B16.5) / Butt Welding(ANSI B16.25) | |
Face to Face | ASME B16.10 | |
Body Material | A351 CF8(M) / A351 CF3(M) or Equivalent | |
Design Temperature | -196℃ ~ 120℃ | |
Fluid | NG, LNG, LN2, N2, etc. | |
Test & Inspection | API 598 / BS 6364 (Cryogenic Test) | |
Remark | Fire Safety Type | |
Actuator | Model | HLR(D) / HLB Series |
Fail Position | Single Acting (Fail to close / Open), Double Acting (Fail to Last Position) |
|
Driving Fluid | Hydraulic Oil | |
Max. Working Pressure | 145 bar |
